T7 Endonuclease I

$99.00$199.00


    500 Units - $99.00 (Cat.# 3610 )

    1,250 Units - $199.00 (Cat.# 3612 )

Category: .

Description

T7 Endonuclease I, a stable homodimer of identical 149 amino acid subunits (1) is the product of a recombinant gene in E. coli . Double-stranded breaks (DSBs) generated by CRISPR/TALEN at desired target sites can be PCR-amplified, and the PCR products can be denatured and re-annealed to form mismatched DNA. If the mismatched DNA length position is more than 1 bp, T7 endonuclease I can recognize and cleave it. It is useful for quantitatively estimating the nuclease-induced mutation frequency of gene edited cells.

 Applications

  • Resolve four-way junction or branched DNA
  • Detect or cleave heteroduplex and nicked DNA
  • Randomly cleave linear DNA for shot-gun cloning

Protein purity

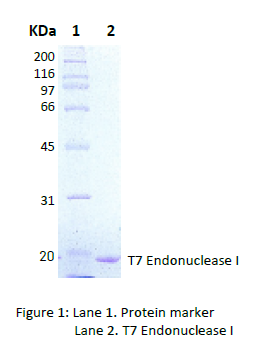

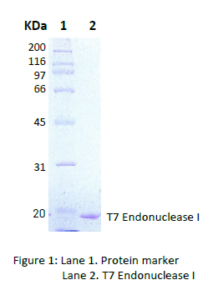

The physical purity of this enzyme is ≥99% as assessed by SDS-PAGE with Coomassie® blue staining (see figure below).

T7 Endonuclease PurityProduct Source
E coli BL21 (DE3) pLysS strain expressing T7 Endonuclease I gene.

Product Includes

  • T7 Endonuclease I
  • 10x T7 Endonuclease I reaction buffer

1x T7 Endonuclease I reaction buffer
10 mM Tris-HCL, 50 mM KCl ,10 mM MgCl2  , 1 mM DTT, pH 7.5 @ 25ºC

Storage Buffer
50 mM Tris-HCl, 50 mM KCl, 1 mM DTT, 0.1 mM EDTA, 50% Glycerol, pH 7.5 @ 25ºC

Storage Temperature
20ºC

 Quality Control assays
T7 Endonuclease I is free from detectable contaminating nuclease activities.

Additional information

Units

500 Units, 1,250 Units

This protocol describes how to determine genome targeting efficiency by digesting annealed mismatched PCR products with T7 Endonuclease I. In the first step, PCR products are produced from the genomic DNA of cells whose genomes were targeted using Cas9, TALEN, ZFN etc. In the second step, the PCR products are annealed and digested with T7 Endonuclease I. If two shorter fragments of the expected size are generated, which means that it has successfully introduced mutations small insertions and deletions (indels typically 2~20bp) are present at the targeted chromosomal site. Fragments are analyzed to determine the efficiency of genome targeting.

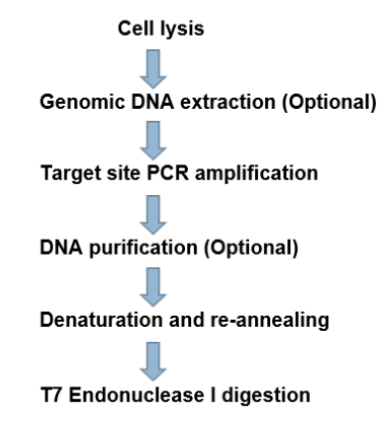

T7 Endonuclease Protocol

Procedures
I.  Sample Preparation

  • Option 1: Genomic DNA extraction

Harvest cells and extract genomic DNA according to the manufacturer extraction protocol.

  • Option 2: Cell lysate preparation

Collect cells and add 50-100 μL Lysis buffer and lyse cells at 95º C for 5-10 min.

II. PCR Amplification

1.  Thaw the kit components, mix and pulse-spin in microfuge each component prior to use.

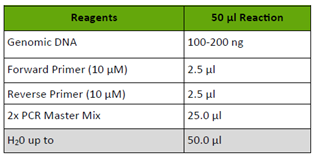

2.  Set up a 50 µl PCR reaction using up to 100-200 ng of genomic DNA as a template. Assemble the following reaction:T7 Endonuclease Reaction Volumes3.  Mix the reaction and transfer the tubes to a PCR machine with the following thermocycling conditions:

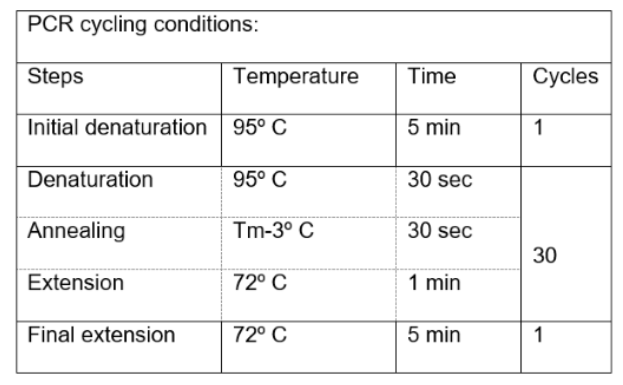

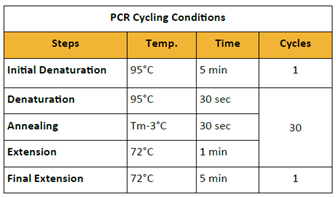

T7 Endonuclease Thermocycling Conditions

4.  Run 3-5 μL of the PCR product on a 1-2 % agarose gel. The final PCR product should be within the range of 600 – 1000bp.

5.  (Optional) If necessary, purify the DNA by using either gel extraction kit or ampure XP beads according to the manufacturer protocol

III. Hybridization (Denaturation and re-annealing)

1.  Assemble reactions as follows:

T7 Endonuclease Hybridization Reaction Set up2.  Mix the reaction gently.
3.  Heat at 95º C for 5 min by using a heat block. Thermocyler can also be used for hybridization.
4.  Turn off the heat block and cool down gradually to room temperature.

T7 Endonuclease I digestion

1.  Assemble reactions as follows:

T7 Endonuclease Digestion Set up2.  Incubate at 37º C for 15-30 min.
3.  Stop the reaction by adding 1.0 µl of 0.5 M EDTA.
4.  Run 1-2 % agarose gel to see the cleavage efficiency. A typical gel for Endonuclease I (Endo I) cleavage is shown below:

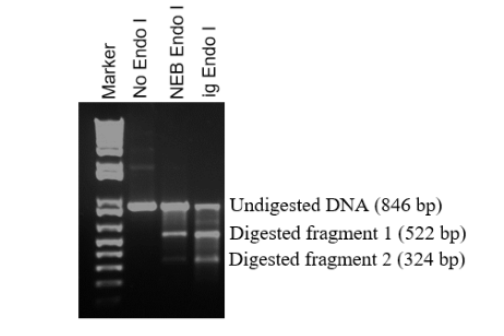

IG T7 Endonuclase vs NEB T7 Endonuclease

Figure 1: T7 endonuclease I activity testing: Double-stranded (ds) DNA fragments containing two types of sequences are PCR amplified, denatured and annealed to produce mismatched (heterologous) dsDNA. Purified mismatched dsDNA digested with Endonuclease I from NEB and Intact Genomics (ig) to compare the enzyme efficiency.

V. Troubleshooting

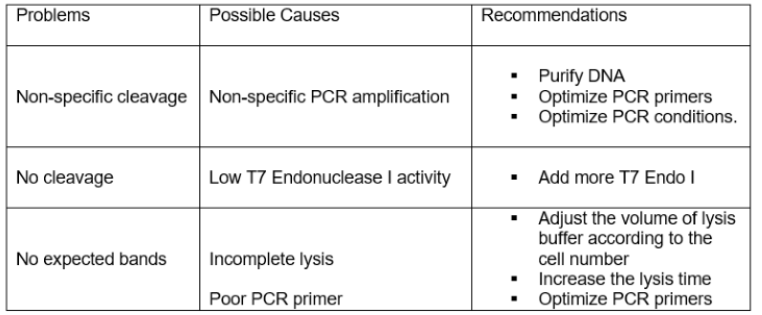

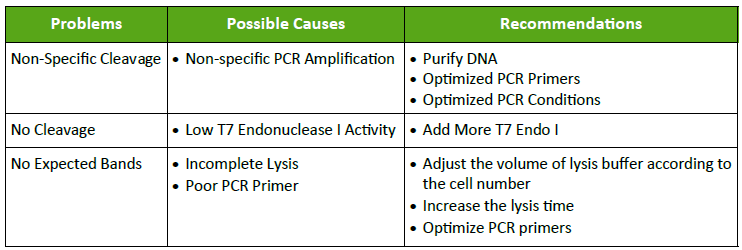

T7 Endonuclease I Troubleshooting



T7 Endonuclease I Manual
